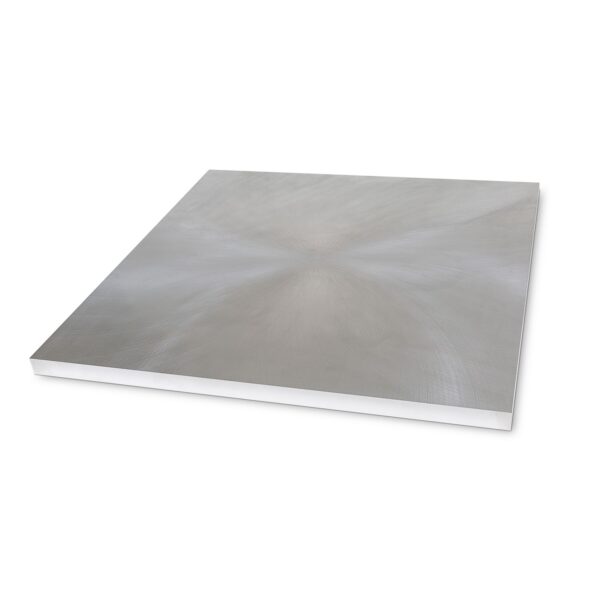

Type: 6-Side Precision Blank
Dimensions: 1.000" X 18.000" X 18.000"
Alloy: 316 Stainless Steel
Material Test Report (MTR Cert) Included
Material is DFARS compliant
Standard Machine-Ready Blanks are pre-configured material in hundreds of dimension and alloy combinations. Each precision blank arrives square, flat, and parallel making them machine-ready, eliminating the need for squaring up the material prior to finish machining.
There are Four Types of Standard Machine-Ready Blanks to Choose from:
Standard Machine-Ready Blanks eliminate the need for specialized machines or tying up machines that are better served performing other operations. Bottlenecks created by time consuming setup and squaring operations are avoided, saving even more time. This increases shop capacity without adding overhead.
Machine-Ready Blanks arrive ready to go directly from your receiving dock onto your CNC machines. By ending prep time and minimizing setup time, your operators and machines get to the high-value work of finish machining, faster.
Consistent tolerances from blank-to-blank reduce operator and machine time spent adjusting setups and work holding fixtures, which saves valuable spindle time.
Machine-Ready Blanks are made flat and designed to stay that way. Flatness is especially important as it eliminates the tendency for part movement during the machining process, especially with large surface area parts.
Demand for flat material that resists movement during machining is high for two reasons, one, part movement can turn parts into scrap, and two, creating flat material, on your shop floor, that resists movement is harder than many people might think. The top and bottom surfaces of machine-ready blanks are processed simultaneously, which maintains flatness and reduces hidden stress introduced into the material when it was milled.
All Standard Machine-Ready Blanks arrive deburred, cleaned, and packaged to eliminate the possibility of damage in handling and shipping.
When Even Tighter Tolerances are Required
Custom Machine-Ready Blanks are available through special order. They provide all the benefits of standard blanks but are precision ground and/or milled to your net specifications and can be furnished as close as +/-.0005˝ dimensionally and as close as .0002˝ in flatness, squareness and parallelism.
