Double-Disc Grinding Services:
Dimensions Processed:
- 625 sq. in. max

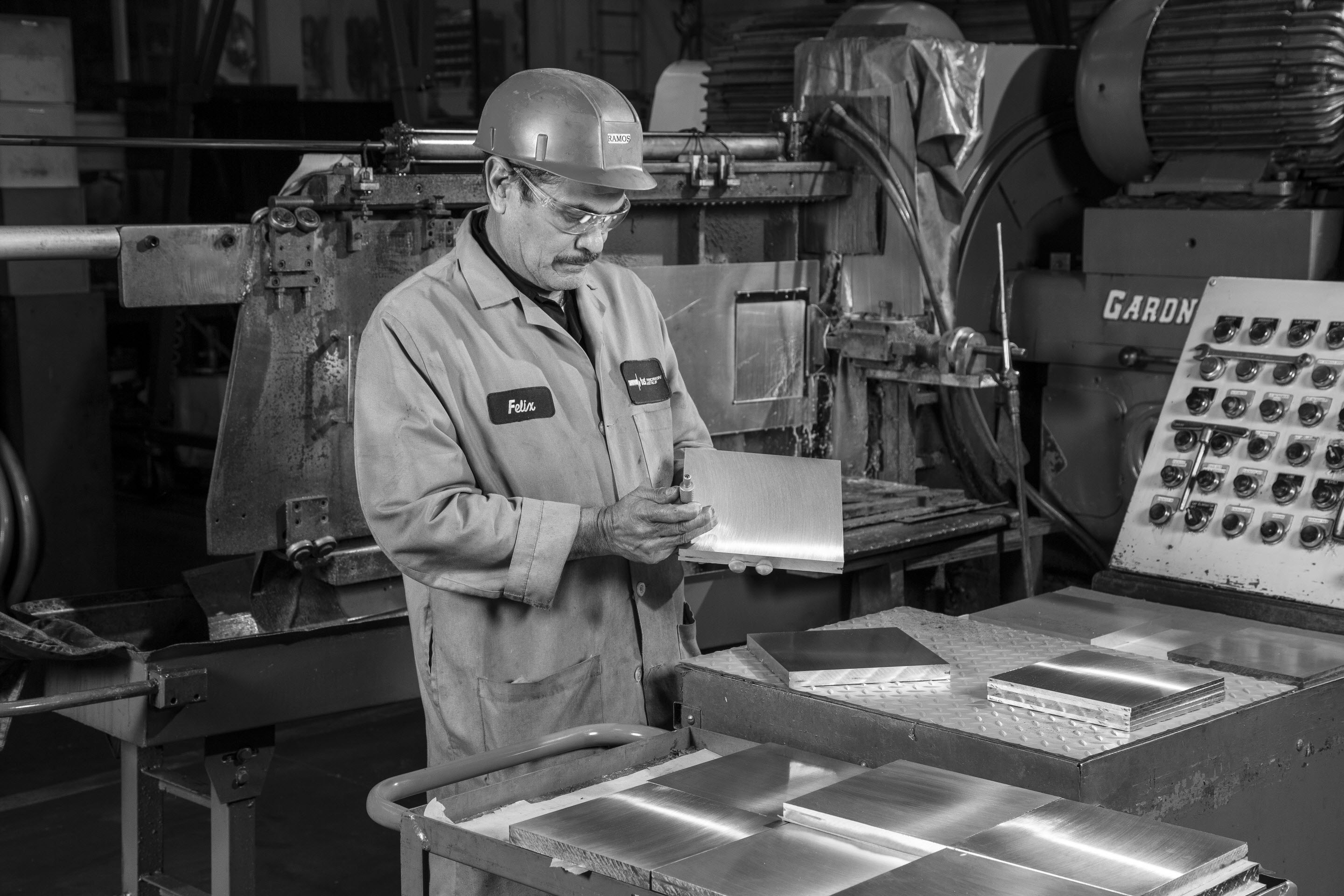

Double – Disc Grinding
Double-Disc Grinding is a highly efficient grinding method that reduces pre-machining costs up to 50% and provides dimensional tolerances, parallelism, and flatness up to ±.001″. (For even tighter tolerances, see our Surface Grinding process.) Double-Disc Grinding uses two opposing abrasive wheels to simultaneously grind two sides of the material. In one operation, equal amounts of material are removed from both sides. Grinding two sides of a part at the same time provides greater control of dimensional tolerances, flatness, and parallelism. Double Disc Grinding achieves tolerances superior to Blanchard Grinding or fly cutting and provides superior surface finishes of up to 16 Ra on aluminum and up to 8 Ra on ferrous alloys.
Stress Reduction
Internal stress relief is another Double-Disc Grinding benefit. Simultaneously removing equal amounts of stock from two sides of a blank reduces residual stress. Less residual stress improves part stability during secondary operations and final machining.
Supports Stacking & Spot Facing
Double-Disc Grinding provides optimum part-to-part parallelism and flatness consistency, making it ideal for material to be stacked or spot-faced in machining operations. Parallelism and flatness tolerances are held consistently even on large, hard-to-machine parts.
High Volume Grinding
Automated Double-Disc Grinding furnishes cost effective thickness sizing for small parts such as fine blanked stamped, die cast, and sintered metal parts. Through automation, the production costs of large quantity runs are significantly reduced.
Your Stock or Ours
TCI Precision Metals is a mill-direct wholesale plate and sheet distributor and can deliver machined parts to your specifications. We also welcome customer supplied material.
Call and speak with our Sales Team to see how Double-Disc Grinding can increase your throughput.
All orders include shipping – FOB customer destination
